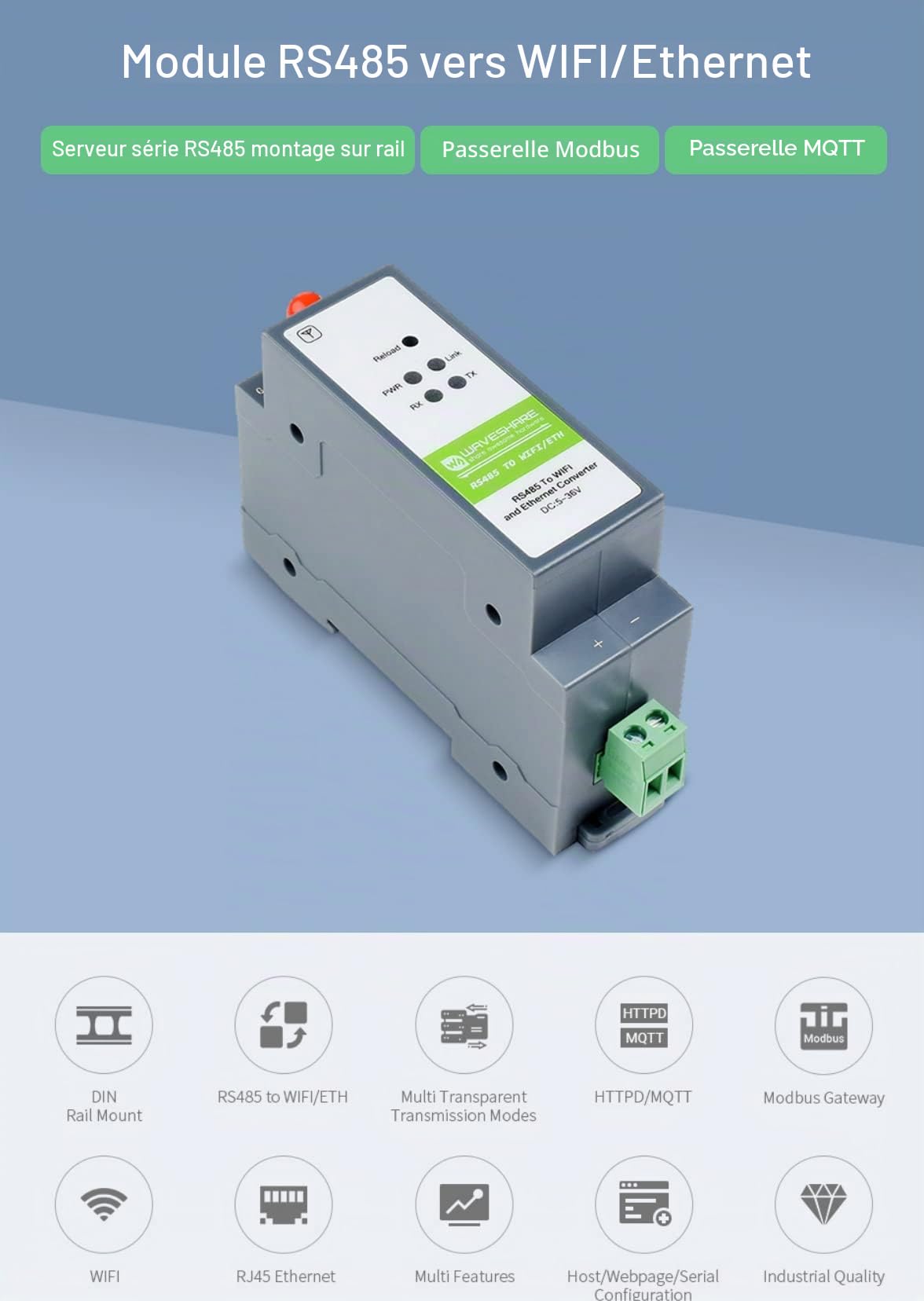

RS485 to WiFi/Ethernet Module - Modbus MQTT Gateway Mounted on Rail With Serial Port - Multi-Protocol Interface Module

Marque: Waveshare
Interface matérielle: Ethernet
Appareils compatibles: PC industriel, PLC, appareils d'automatisation
Protocole de liaison de données: Ethernet
Débit de transfert de données: 100 mégabits par seconde
UPC: 755291679045
Nombre d'articles: 1
Fabricant: Waveshare

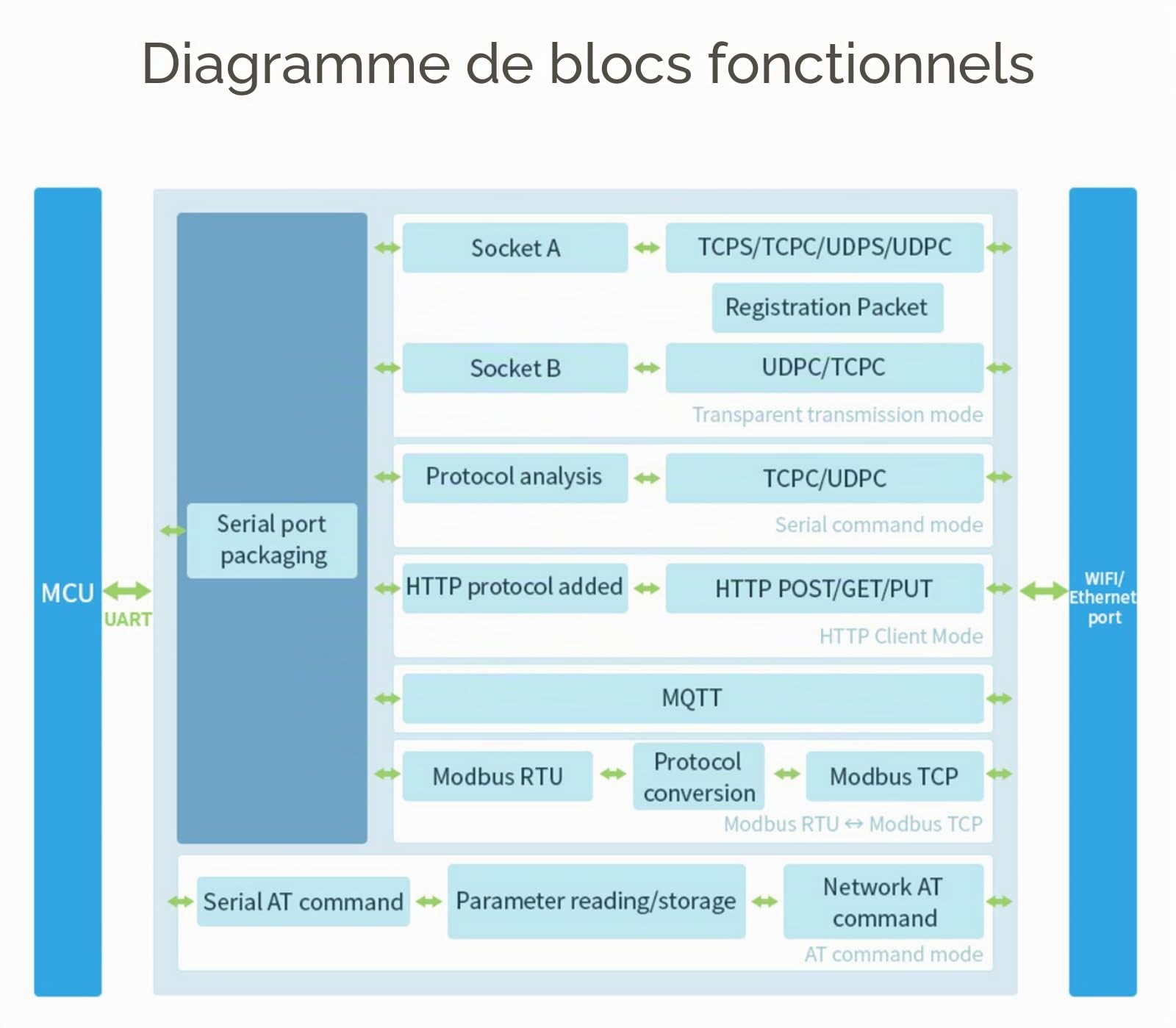

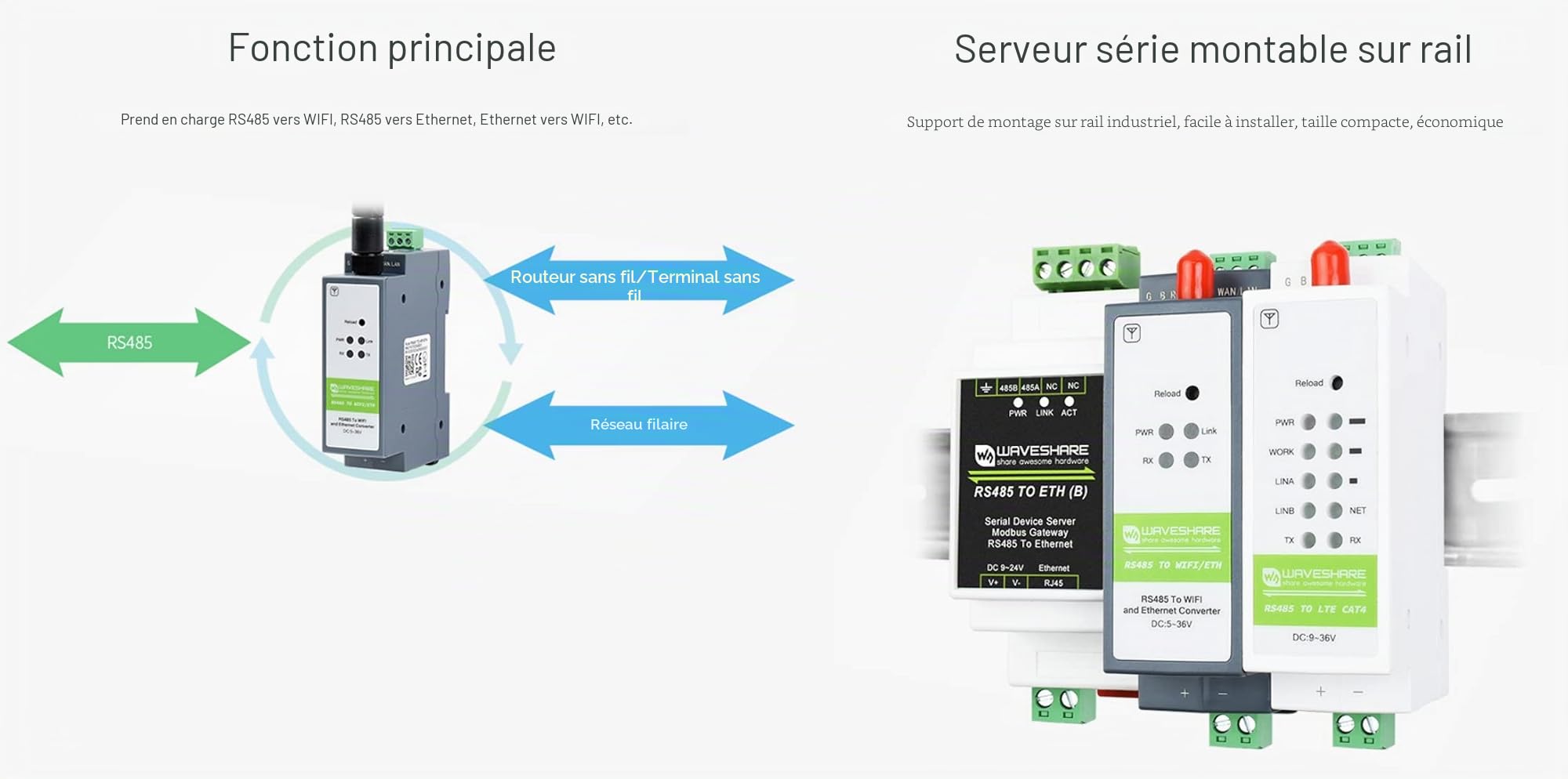

- RS485 to WIFI/Ethernet serial server supports RS485 to WIFI, RS485 to Ethernet, Ethernet to WIFI, etc. supports TCP Server / TCP Client / UDP Server / UDP Client
- Serial command mode, the user sends data to the server according to the protocol, send data to different servers without restarting
- Support HTTPD Client Mode, after the user has set the HTTP header through AT commands or web page, the module can send data to the HTTP server, or obtain data from the HTTP server
- Support MQTT function, support Modbus TCP and Modbus RTU interconversion mode
- Industrial rail-mount support, easy to install, compact size, cost-effective. Power supply is not included, it is recommended to use a 12V Industrial DIN-Rail Power Supply
