RS485 vers RJ45 Ethernet Convertisseur Module, Industriel RS485 Serveur Sériel, TCP/IP vers Série Module, Modbus Gateway, Alimentation 6~36V, Support pour Montage sur Rail

Marque: Waveshare
Socket du CPU: LGA 1200
Appareils compatibles: Tout appareil avec port RS485 et connectivité Ethernet
Technologie de mémoire RAM: DDR4
Processeurs compatibles: Intel Core i7
Nom de modèle: RS485 to Eth Serial Server (C)
Modèle du CPU: Core i7
Interface de la carte graphique: PCI Express
Fabricant: Waveshare

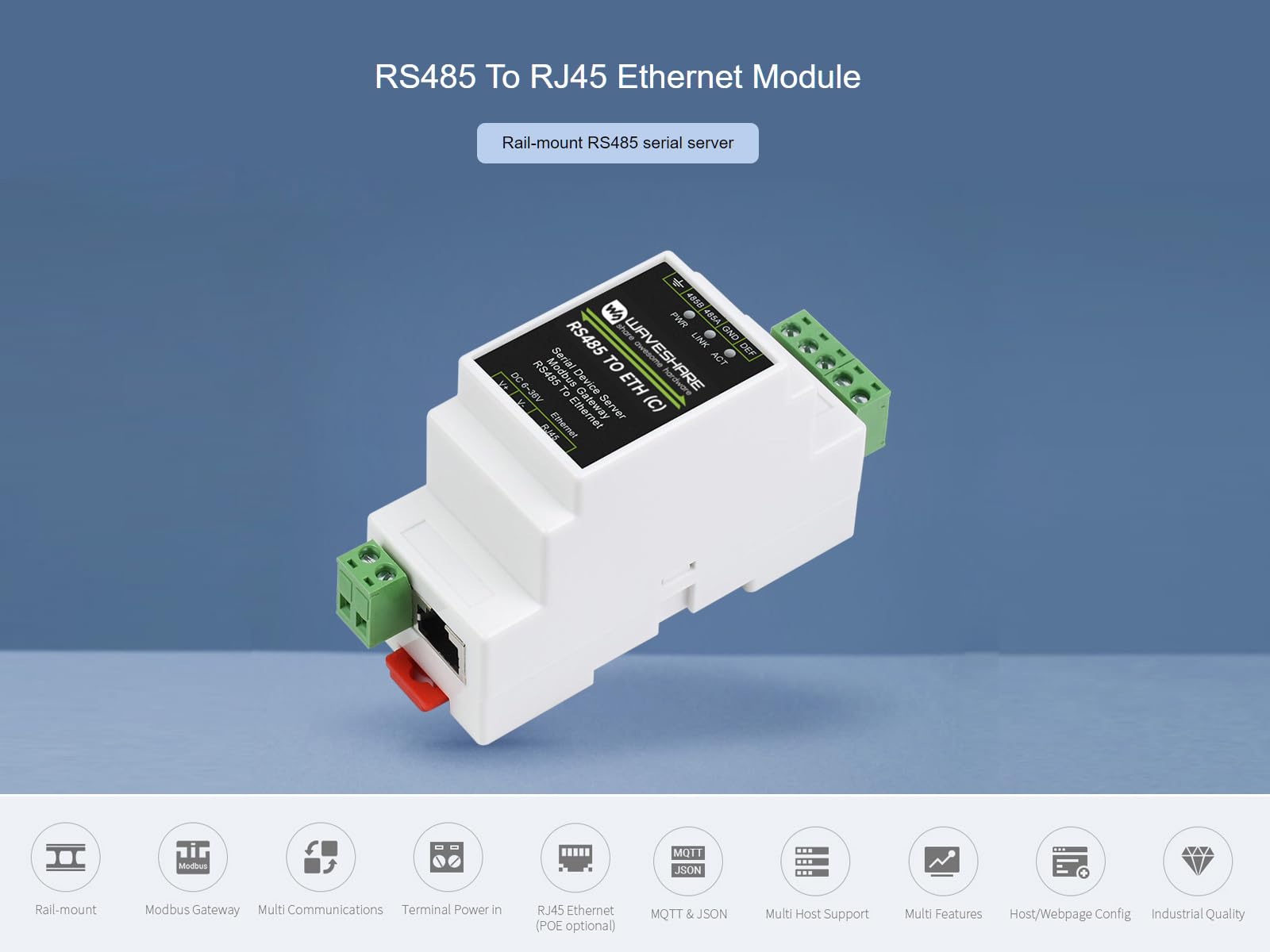

- RS485 to RJ45 Ethernet converter module combines multi functions in one, including serial server, Modbus gateway, MQTT gateway, RS485 to JSON, etc. The module features RS485 and Ethernet port, uses screw terminals for power input, 6 ~ 36V power supply
- RS485 to Ethernet industrial serial server is a RS485 device data acquisitor / IoT gateway designed for industrial environment, support bi-directional transparent data transmission between RS485 and Ethernet

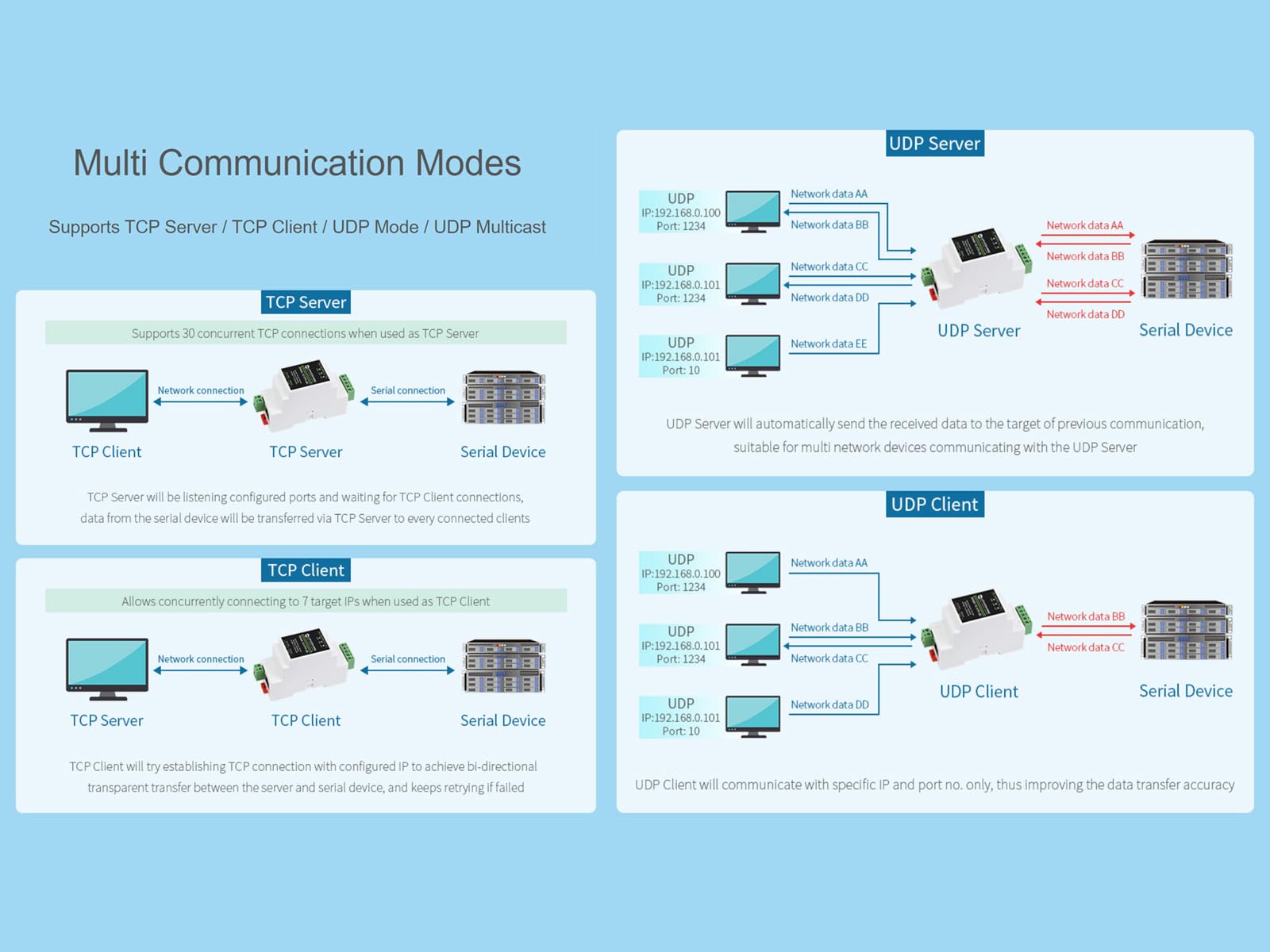

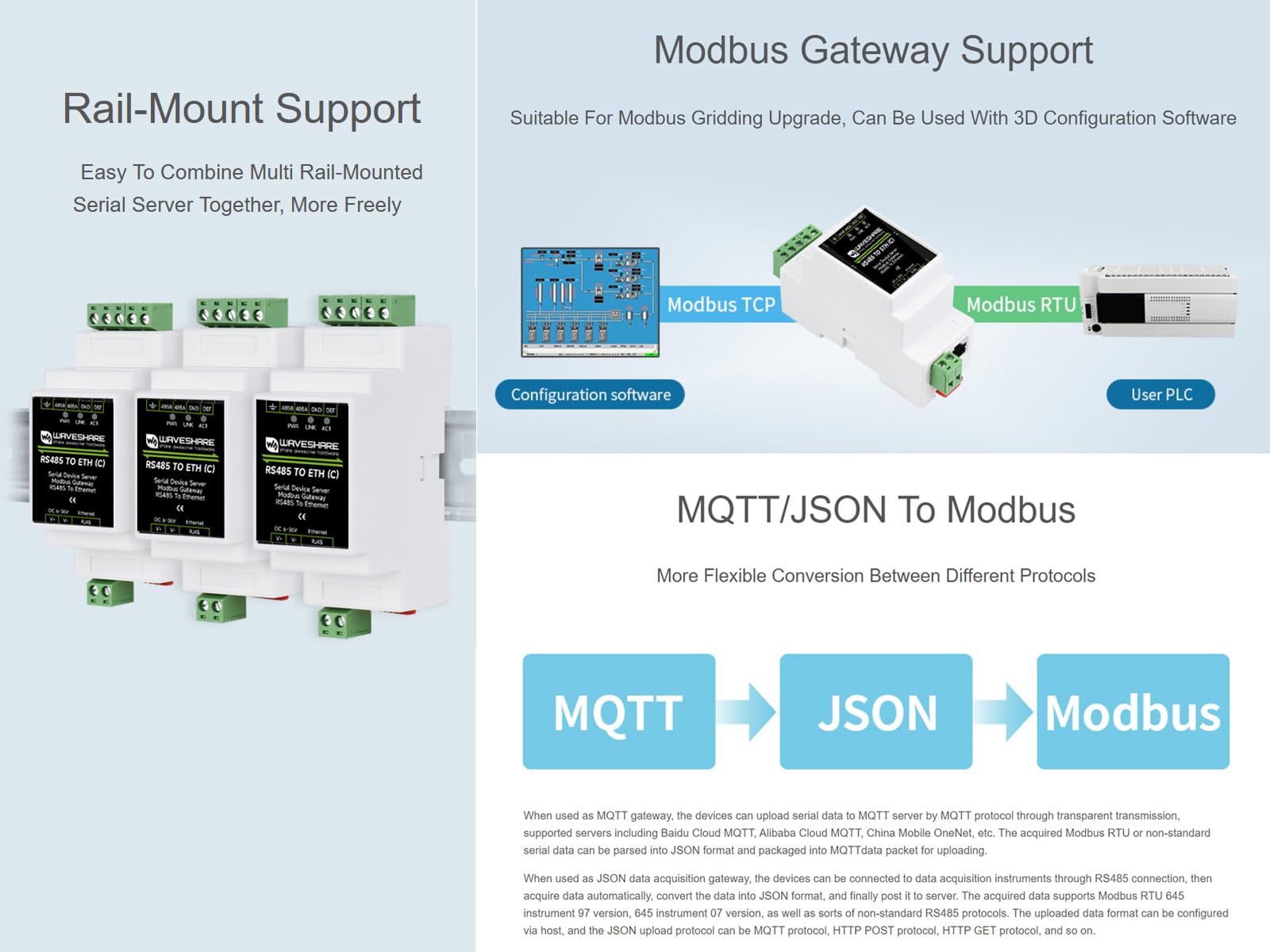

- Modbus gateway support, suitable for Modbus gridding upgrade, can be used with 3D configuration software. Multi communication modes, supports TCP server / TCP client / UDP mode / UDP multicast. MQTT/JSON to Modbus, more flexible conversion between different protocols
- Multi hosts roll-polling support. User-defined heartbeat/registration packet. NTP protocol support. Multi configuration methods
- Rail-mount RS485 serial server, easy to combine multi rail-mounted serial server together, more freely
